Classic wooden boat plans is a collection of established wooden boat designs ranging from the early 1900’s to about 1970. Some of our own designs are Banshee, Custom Barrelback 19 and the Deep V inspired by the Donzi Sweet 16, Bantam. Other plans include Chris Craft, Hacker, Gar Wood, Riva, Switzer, barrel back, Baby Bootlegger, Flyer, Teaser.

Riva Aquarama 27'

sale

Riva Aquarama 27'

295.00 350.00

Riva Aquarama 27 foot.

Possibly the most famous wooden boat worldwide, the Aquarama was an intricate design with a ground breaking approach to both comfort and quality.

She was designed with a bizarre frame set up ranging from 6 inches and up, most likely to accommodate the running gear of the time.

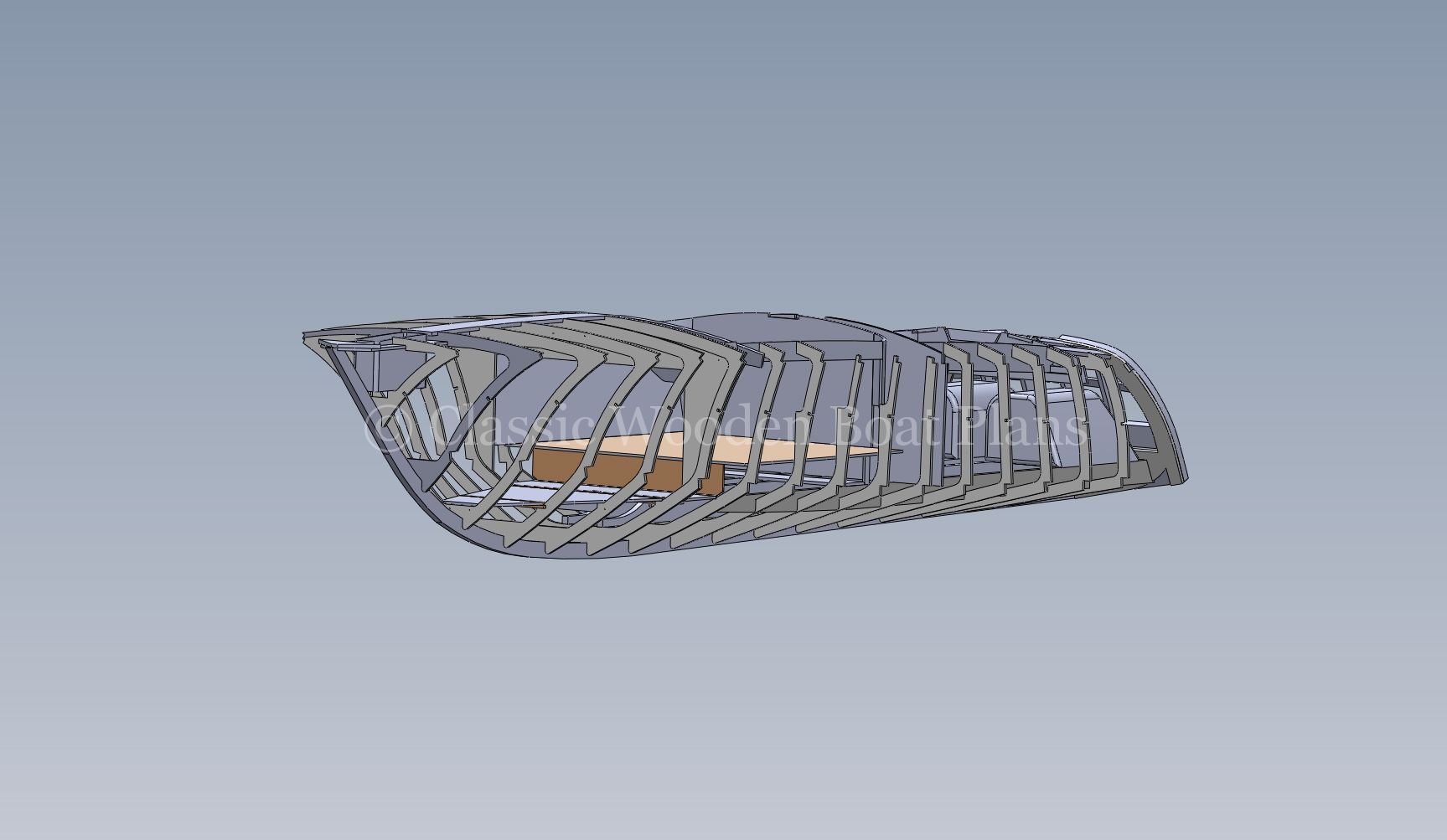

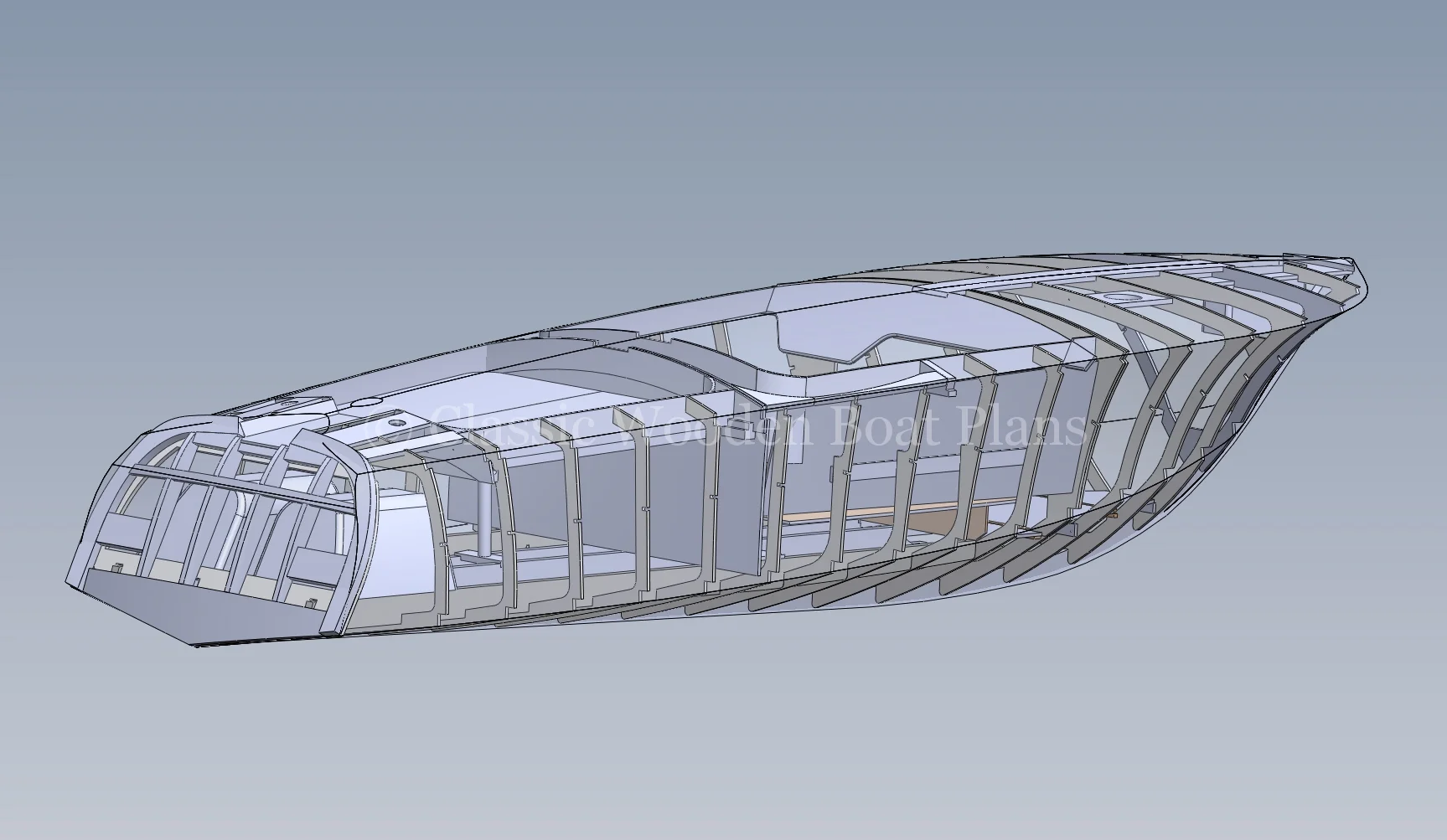

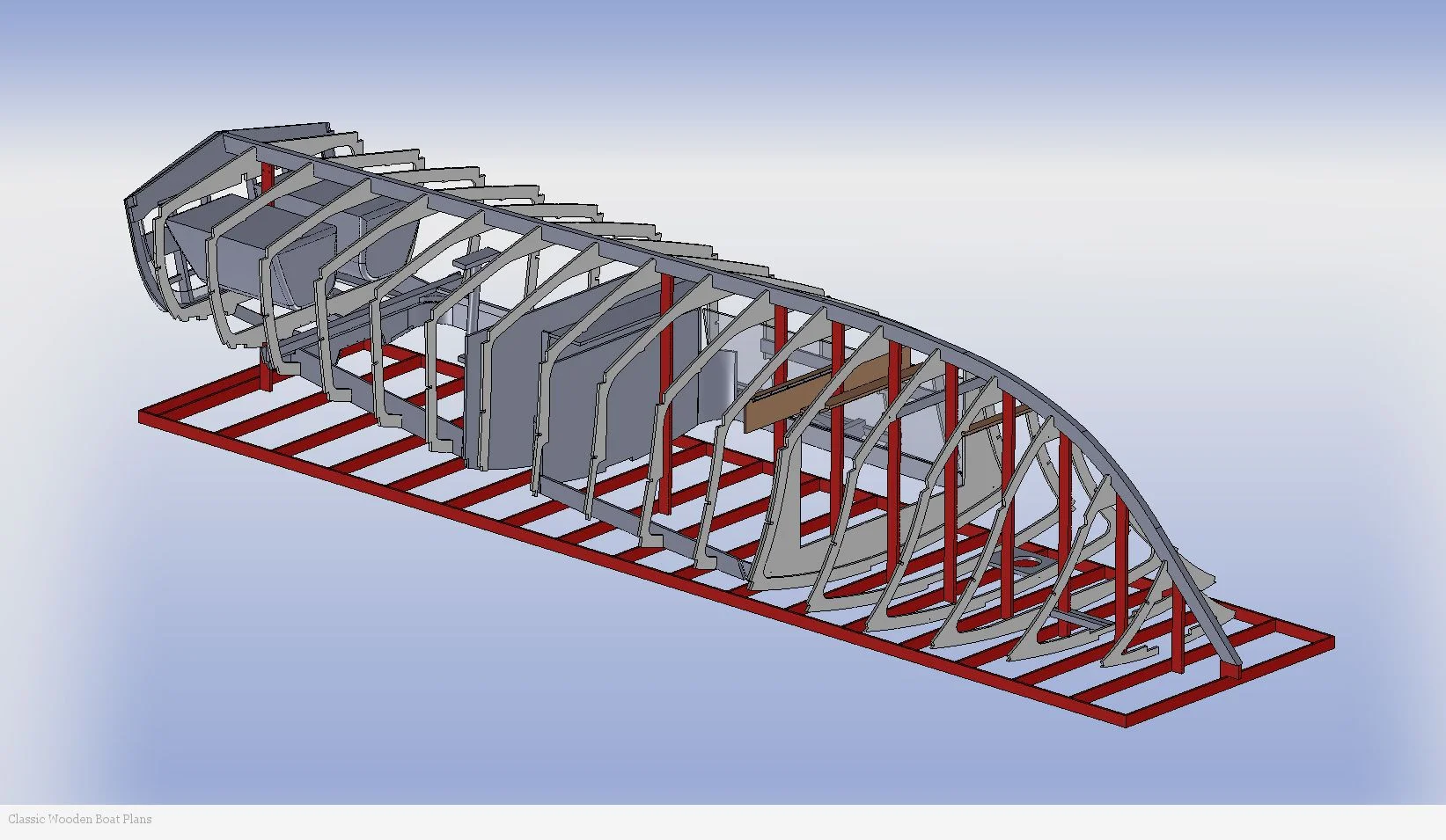

This version has all frames spaced at 18” and the double stringers for twin V8 installation! Each frame has its own full size plan so NO LOFTING required! 3D models are also provided as a visual aid in examining the construction. This version is from the original sheet plans and a full size building jig is also included.

Builders may also scale down the plans to create a proportionally smaller craft, even down to model size, say 1:10.

Floors and cockpits are full defined as is the anchor well, rear sun lounge, transom and rear deck skid.

It’s a very seaworthy and proven hull for those looking to build a large offshore boat for friends and family. I can’t see any advantage in trying to replicate the vessel historically as fittings and hardware if sourced would be overly priced and ill-fitting.

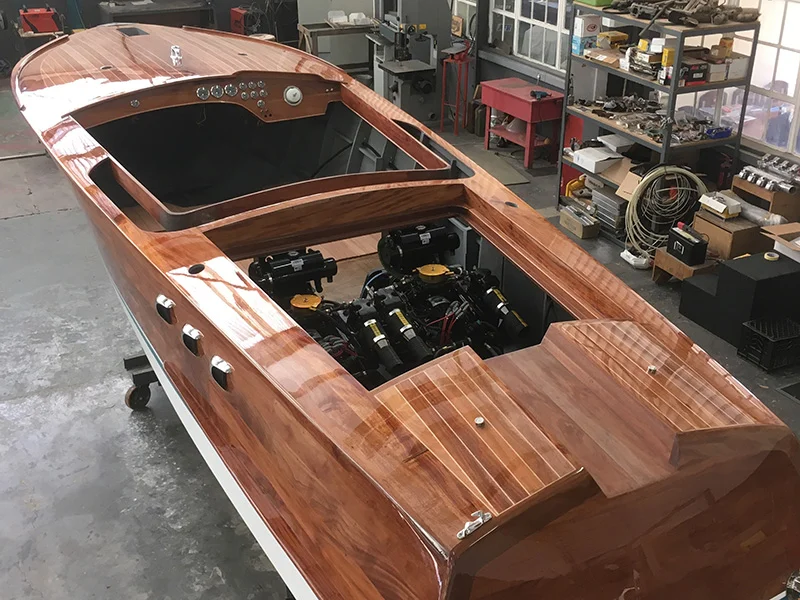

For those looking to buy rather than build, David Pearce restorer and builder in Portugal is onto his second Riva, this one at full size 27 feet and ready to be optioned up. Please follow the link to Davids website, Wooden Boat Workshop https://www.woodenboatworkshop.com/

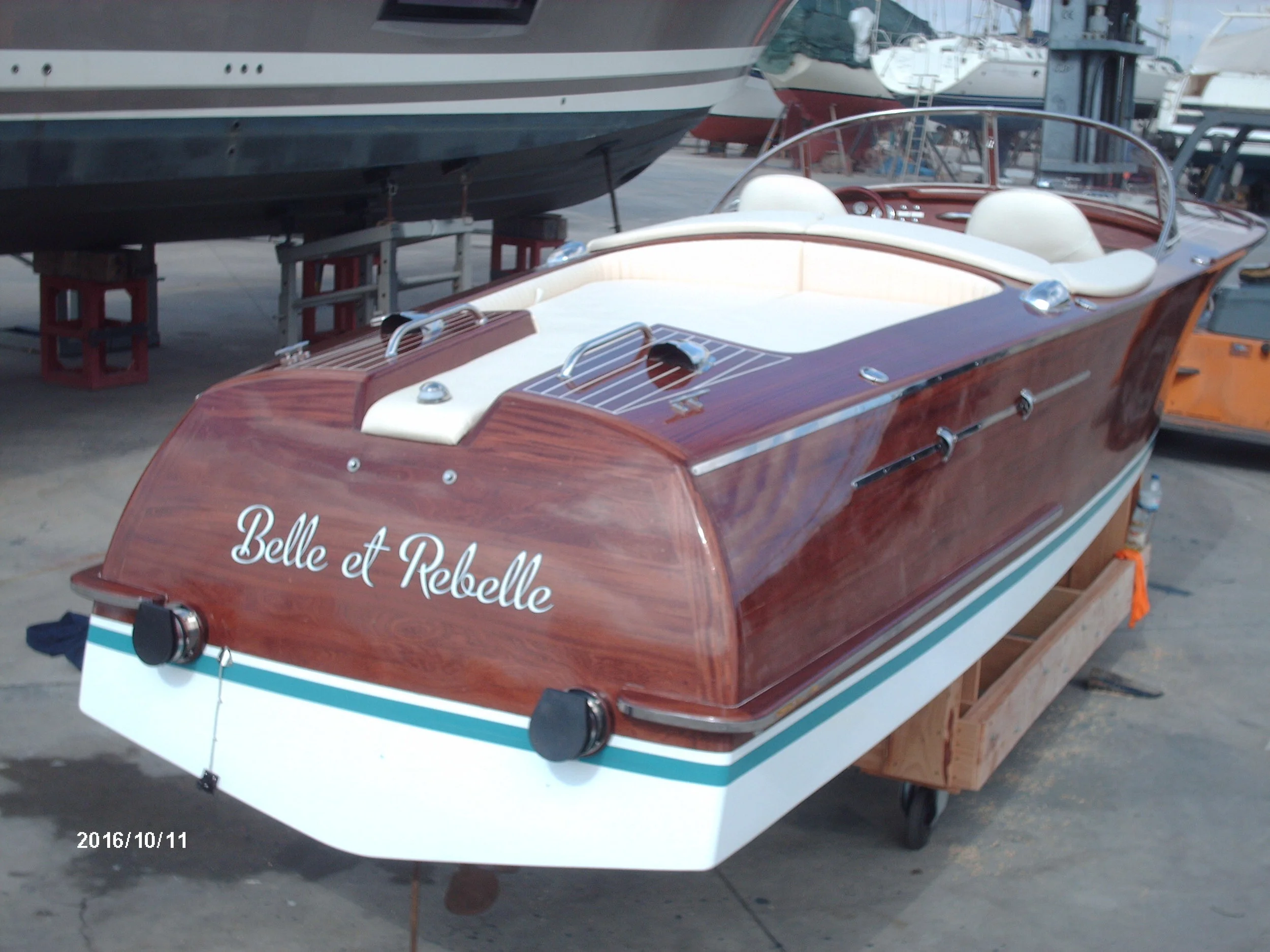

The video below was taken of the 23 Riva replica launch, Belle et Rebelle built by David.

Plans provided in PDF format for full size printing
