Zephyr 16'

Shop

Classic wooden boat plans is a collection of established wooden boat designs ranging from the early 1900’s to about 1970. Some of our own designs are Banshee, Custom Barrelback 19 and the Deep V inspired by the Donzi Sweet 16, Bantam. Other plans include Chris Craft, Hacker, Gar Wood, Riva, Switzer, barrel back, Baby Bootlegger, Flyer, Teaser.

Zephyr 16'

Zephyr flotation test
Zephyr Assembly 5.PNG
Zephyr flotation test
Zephyr Assembly 5.PNG

Zephyr 16'

250.00

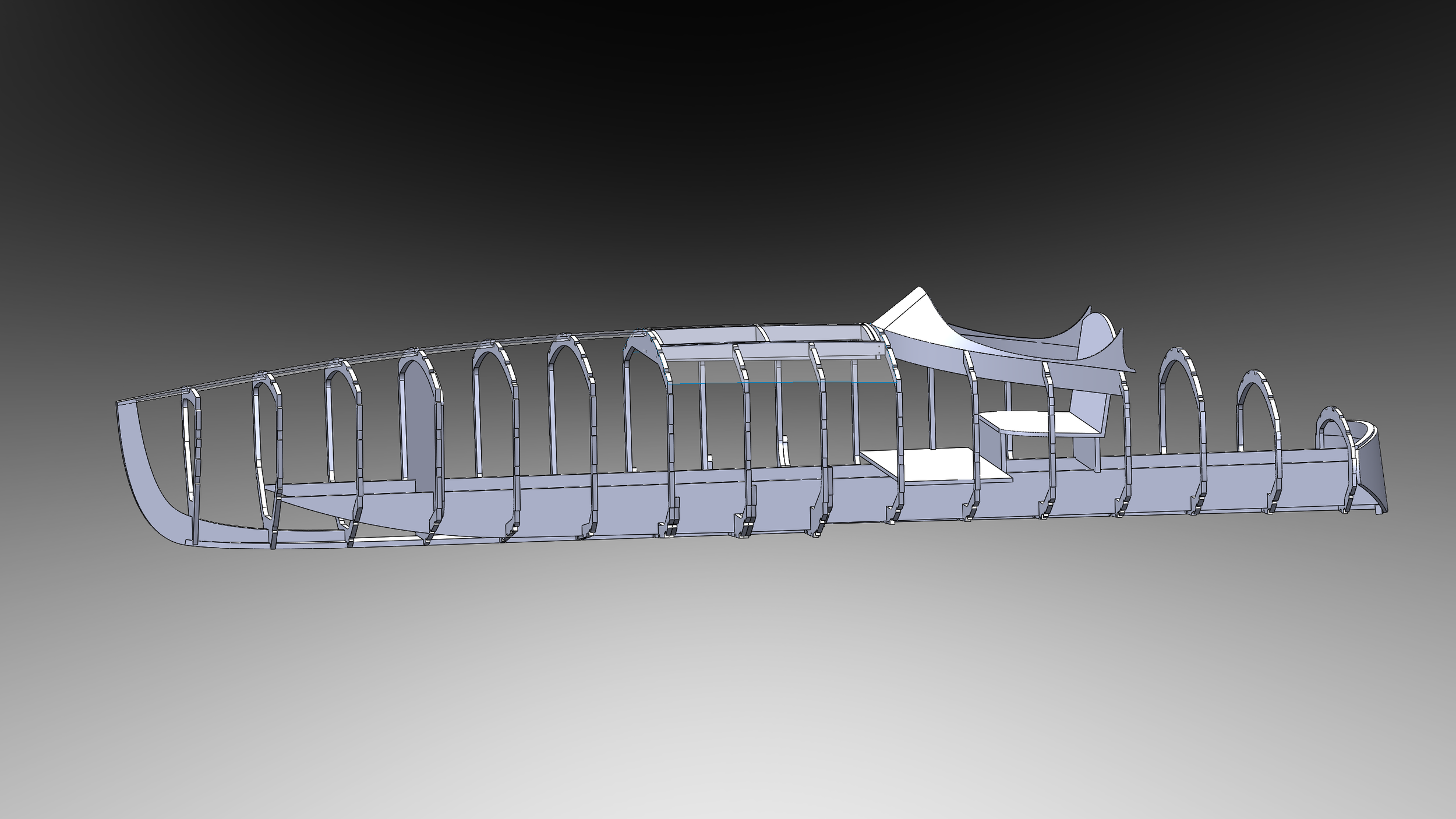

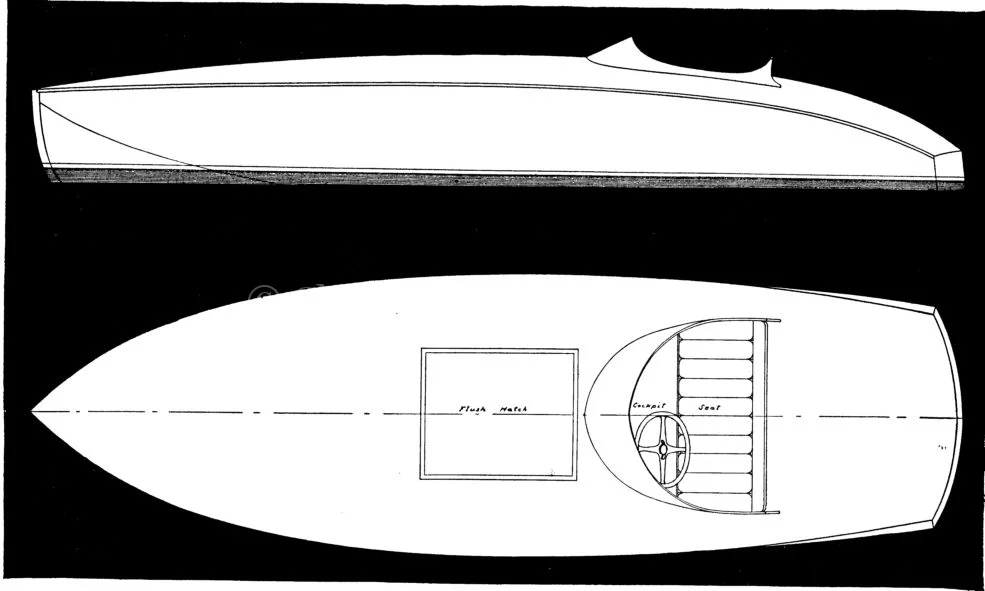

Zephyr, a 16 foot stepped Hydroplane. Reproduced from the original offsets and plans by A.A.Apel. I found this to be a very advanced design in that the stringers start at the transom and end at Frame 2. Other than its impressive deck lines, Zephyr lends itself to a variety of engine sizes through its generous beam. These tested plan have the corrected offsets incorporated into the lines so is suitable for full size construction without the need for correcting the lines and attempting to fair frames. Original offsets are notorious for errors as they were often measured up as a matter of record rather than used to build.

In brief, there are 16 frames including the transom, full length stringers, dual stepped keel set up, engine hatch assay and seat assay.

Construction plans included heights from base and a custom ladder style building jig.

Plans provided in PDF format for full size printing.
